GEO-MEASURE
€ 699.00 - Incl. 21% VAT
Compact handheld GNSS RTK receiver offering centimeter accuracy, multi-constellation tracking, and long-lasting performance.
Quantity:
- 2 weeks
"Pedimos dos dispositivos y los recibimos en una semana. La entrega fue rápida y sin problemas. Ahora utilizamos los dispositivos semanalmente y estamos muy satisfechos con ellos. ¡Compactos y fáciles de usar!"
Authorized Partner
100% genuine hardware
Trackable Shipping
Fast, insured global delivery
Technical Support
Expert setup help when needed.
Secure Payment
Encrypted & safe checkout process

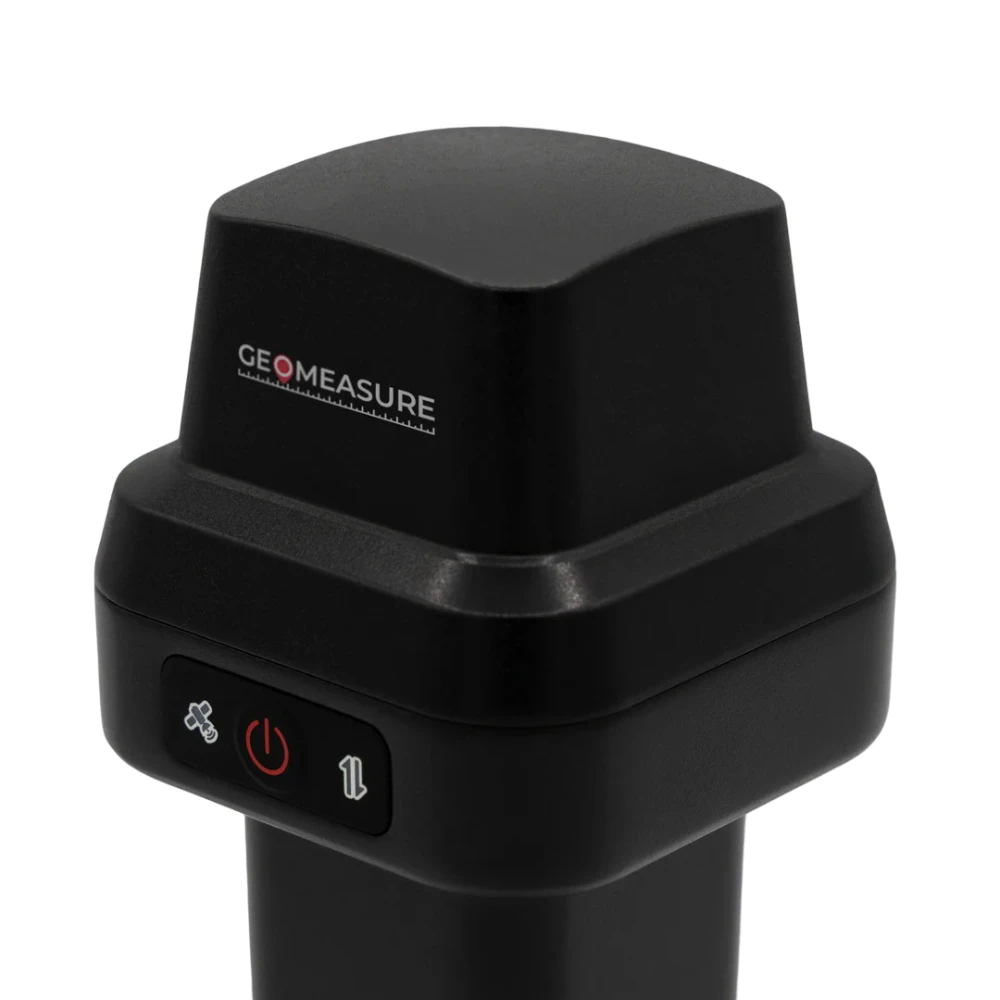

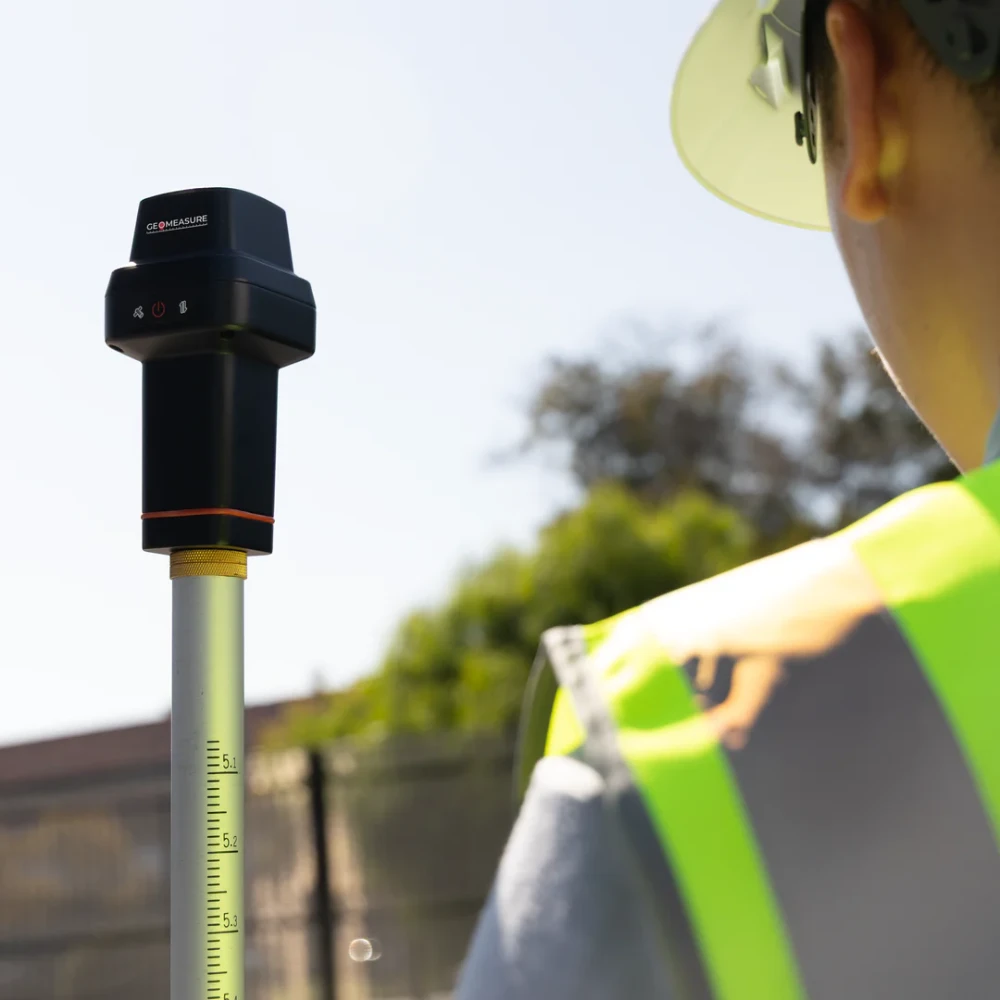

GEO-MEASURE Handheld GNSS RTK Receiver delivers centimeter-level accuracy in a compact, portable design. Built for surveyors, engineers, and mapping professionals, it integrates GNSS, Wi-Fi, and Bluetooth in one lightweight, rugged unit. Supporting GPS, GLONASS, Galileo, and BeiDou, it ensures fast, reliable positioning even in dense urban areas, forests, or mountainous terrain.
This handheld RTK device includes a free one-year GEODNET RTK subscription, giving instant access to real-time correction data through Europe’s leading decentralized RTK network. The GEO-MEASURE features 30 hours of battery life, quick 30W Type-C charging, and seamless control via its cross-platform mobile app (Android & iOS). Designed for durability, it withstands tough field conditions, making it ideal for construction, surveying, agriculture, and environmental monitoring.
Whether used for land surveying, GIS mapping, precision farming, or infrastructure projects, GEO-MEASURE simplifies professional-grade positioning. Its plug-and-play setup removes the need for bulky antennas or complex configurations. Experience the next generation of RTK accuracy in Europe with the GEO-MEASURE.
Additional information
| Constellations | GPS, GLONASS, Galileo, Beidou |
|---|---|
| Signal Tracking | GPS L1C/A, L2P(Y), L2C, L5 |
| Channels | Up to 1040 |
| Cold Start | < 29 s |
| Warm Start | < 28 s |
| Hot Start | < 2 s |
| Convergence Time | < 5 s |
| Initialization Reliability | > 99.9% |
| RTK | H: 8 mm + 1 ppm RMS |
| Standalone | H: 1.5 m RMS |
| RTCM | v3.x (MSM included) |
| Output | NMEA-0183 (10 Hz) |
| Battery | 7.2 V @ 6800 mAh Firmware Version |
| Voltage | USB-C (PD) |
| Battery Life | 24 hrs (active time per charge) |
| Charging Time | 4 hrs (typ), 8 hrs (max) |
| Operating System | Embedded RTOS |
| Internal Memory | 2M PSRAM |
| Bluetooth | Version 4.2 (BR/EDR & BLE) |
| Wi-Fi | 802.11b/g/n, up to 150 Mbps |
| USB Type-С | Charging, Data Transfer |
| Dimension | 71 mm x 71 mm x 140 mm |
| Weight | 430 g |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +80°C |
| Ingress Rating | IP67 |
| Shock Resistance | On Survey Pole, 2 m Drop |
| Humidity | Up to 100% |
| Certification | CE, FCC |
