The Zap
€ 59.00 - Incl. 21% VAT
The Zap is more than just a meter – it’s a smart tool that helps you gain insights, earn rewards, and contribute to a more sustainable energy future.
- Mid-June
Quantity:
- Authorized partner
- Trackable shipping
- Technical support
Secure payment.

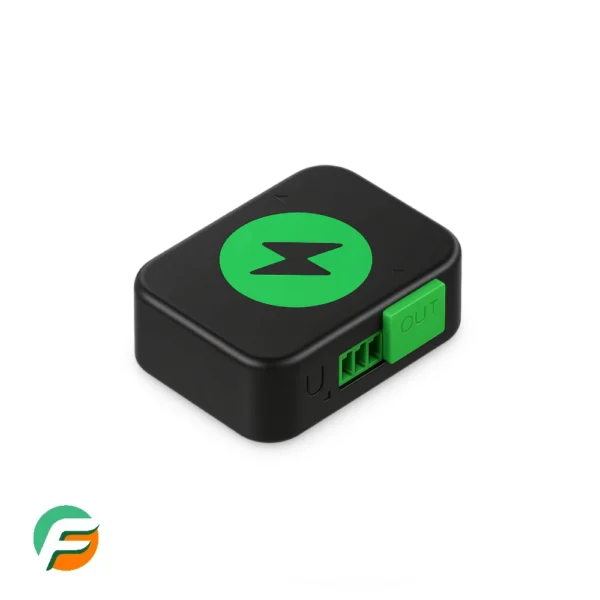

The Sourceful Energy Zap Smart P1 Meter is designed to give you full control over your energy data while making sustainability simple and rewarding. By connecting directly to your utility meter, it delivers real-time insights into your energy consumption, helping you optimize usage, cut waste, and lower bills. Unlike traditional gateways, the Zap operates independently: no extra fees, no complicated setups. Just plug it in, connect via Wi-Fi, and manage everything through the intuitive app. With features like historical usage tracking and customizable alerts, the Zap empowers you to spot inefficiencies, build better habits, and make smarter energy decisions every day.
What truly sets the Zap apart is its built-in rewards system. By making sustainable choices and reducing unnecessary consumption, users earn daily reward points directly in the app. These points turn eco-friendly behavior into tangible benefits, motivating households and businesses to take a proactive role in lowering emissions. Whether you’re a tech-savvy homeowner, an eco-conscious individual, or a forward-thinking utility innovator, the Zap provides an accessible and impactful way to connect with your energy usage.
More than just a smart meter, the Sourceful Energy Zap is a tool for building a cleaner future. It helps you shrink your carbon footprint while ensuring your energy data benefits you, not just your provider. With real-time monitoring, actionable insights, and meaningful rewards, the Zap transforms energy management into a simple, cost-effective, and environmentally responsible choice.
By combining efficiency with sustainability, it gives every user the power to cut waste, embrace greener energy, earn rewards and contribute to a connected energy ecosystem.
Additional information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 7.55 × 4.7 × 2.0 cm |
| Housing | Plastic PC/ASA, Flame retardant (UL94-VO), Dust and Water protected, IP65 classified |
| Dimensions (H x W x D) | 75.5 x 47 x 20 mm |
| Weight | 75 grams |
| Mounting | On flat metallic surface with embedded magnetics, with screws together with optional mounting plate |
| Cable Interface | 1.5 m fixed flat cable with RJ12-connector |
| Power Feed | 4.7 – 5.2 V, Typical 60 mA average, 180 mA max @ 5V Supplied from electricity meter |
| Status Indications | 3 x LED-indicators |
| Wi-Fi | EEE 802.11b/g/n 2.5 GHz (5 GHz not supported), WPA/ WPA2 Personal |
| Antenna | Internal “T bar, Balanced Flex Antenna” |
| Temperature Range | Operating: -30 to +60°C, Storage: -40 to 70°C |
| Data Interface | Serial 5V logic (RX), Han port enable the signal is always active |
| Meter Communication Protocol Support | OBIS code according to IEC62056, Supports EFS, IEC 62056-7-5 and EFS2, IEC 62056-21 |
| Cloud Communication | JSON formatted messages over MQTT |
| Security | TLS |
| Update Interval | Same as the meter data transfer interval (min 1 second) |
| FW Update | Over the Air |
| Onboarding | Onboard using the free Sourceful Energy app for iOS and Android or Configurator website. |
| Approvals | CE, according to Radio Equipment Directive (RED) 2014/53/EU |
| Manufacturer |
Documentation
Looking for additional information? In this section, you’ll find all the recommended and related documents for your product, including manuals, guides, and specifications. Feel free to explore and download the files below to help you make the most of your purchase. Everything you need is just a click away!
